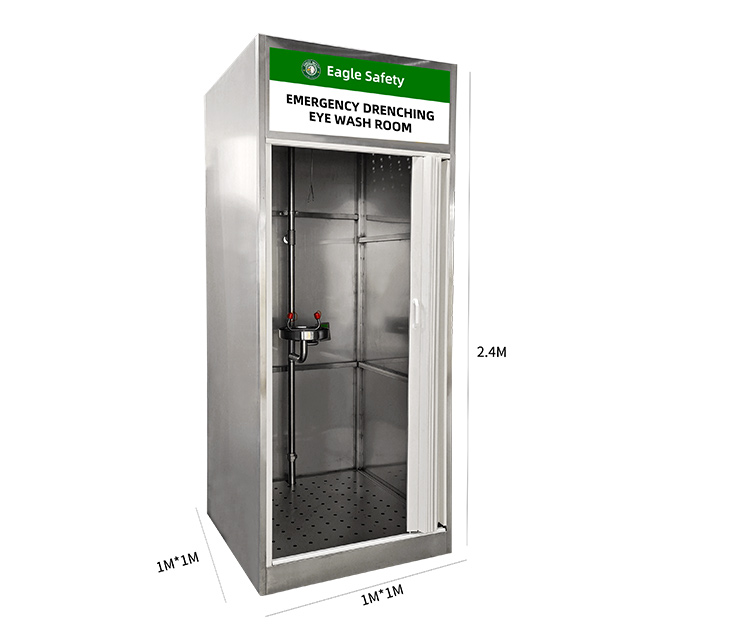

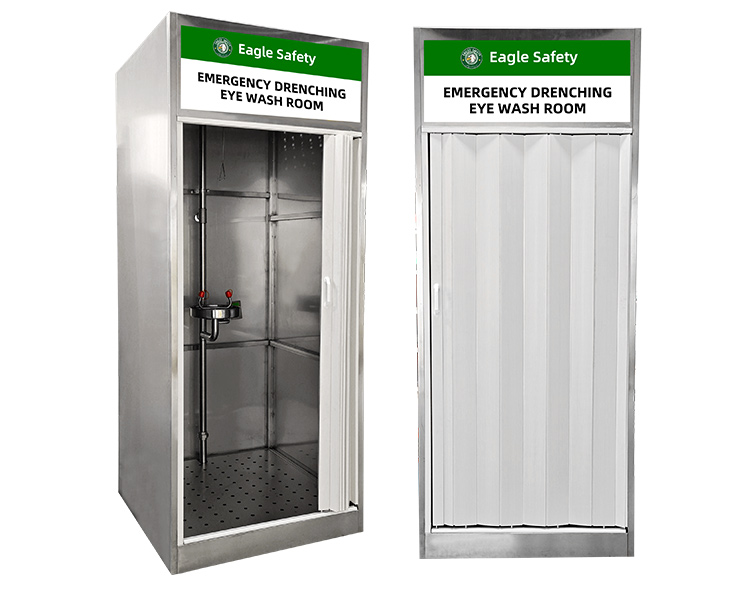

ANSI Z358.1-2009 Compliant Stainless Steel Enclosed Drenching Eye Wash Room 6910-B
● Our all-in-one eyewash facility offers a complete safety solution for environments where exposure risks are significant.
● Our modular eyewash booth can be easily integrated into existing spaces, offering an industrial-grade drenching system for comprehensive protection.
● The self-contained eye wash chamber is designed for optimal functionality and privacy.
Main Features
Elevate your workplace safety with our state-of-the-art composite enclosed drenching eye washroom:
Comprehensive Design

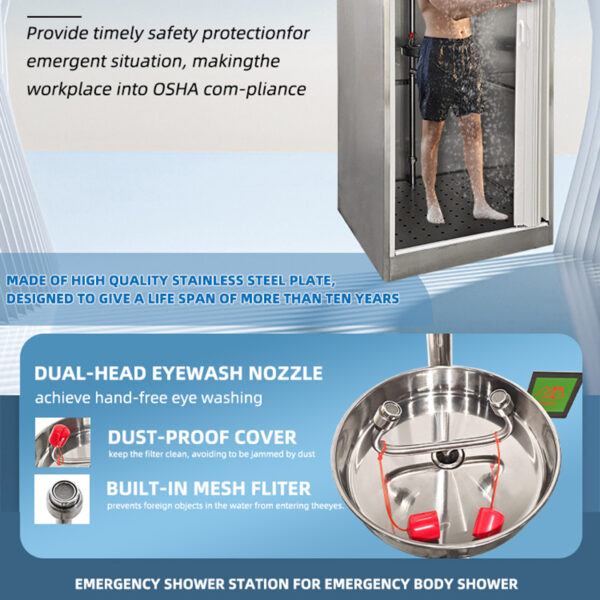

Integrates eyewash and full-body shower for complete decontamination
Premium Construction
Premium Construction
ANSI Z358.1-2009
Meets or exceeds all standard requirements for emergency equipment
Enclosed Environment
Provides privacy and containment during emergency use
Versatile Application
Suitable for high-risk industrial settings, chemical plants, and laboratories
All-in-one Eyewash
Complete safety solution for environments where exposure risks are significant
Key Advantages
- Easy installation for quick setup
- Simple maintenance for long-term reliability
- Strong, durable structure built to withstand industrial environments
- Made from high-quality materials for extended service life
- Keeps users safe during critical situations
- Promotes physical well-being through immediate contamination removal
- Easily cleaned to maintain sanitary conditions
- Components can be changed efficiently for optimal performance
Technical Specifications
| Material | Stainless steel |

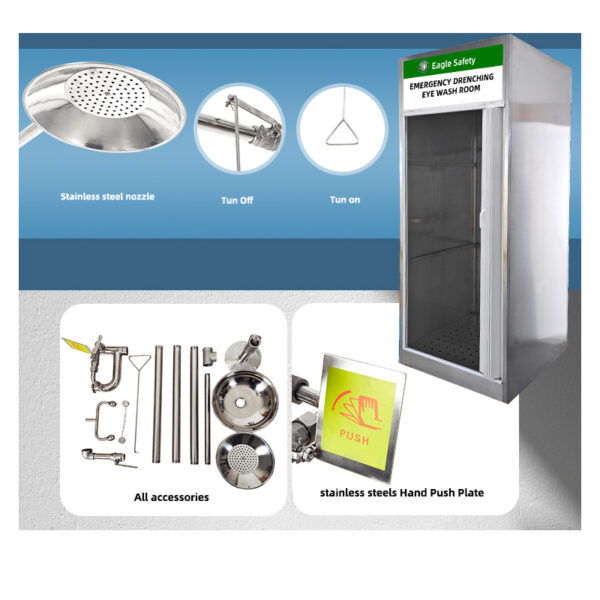

| Eyewash | stainless steel inlet pipe(48mm), ball valve switch, round bar puller (6mm diameter) and showerhead |
| Inlet and outlet | G1 1/4 inlet and outlet flow |
| Spray water flow | >76L/min |
| Nominal Pressure | 1.0Mpa |
| Pipe diameter | 38mm |
| Face and eye wash water flow | 11.4L/min |
| Working pressure | 0.2-0.4Mpa |
| Test pressure | 1.5Mpa |
